Baofeng UV-5RE Plus
Baofeng UV-5R 3800mAh: Power and Autonomy for Europe
The dual-band model (136-174 MHz / 400-520 MHz) of the UV-5R 3800mAh is designed to deliver long-lasting and efficient performance, available in a range of colors and distributed exclusively through authorized Baofeng dealers.
Discover the Baofeng UV-5R 3800mAh, a walkie-talkie designed to comply with European regulations, featuring CE certification. This model combines a compact design with a high-capacity battery, making it ideal for professionals and enthusiasts seeking reliability and exceptional performance.
- Output power: 5W, providing clear and effective communications across a variety of environments
- High-capacity battery: 3800 mAh, offering extended autonomy for long working hours without frequent recharging
- Range: up to 12 km, suitable for communications in urban environments and outdoor activities
- Robust and ergonomic design: drop-resistant and comfortable to handle, ideal for intensive use
- Protection against dust and moisture: IP54 certified, enabling reliable operation under moderate conditions
The UV-5R 3800mAh includes both a charging base and USB charging options, providing convenience and flexibility to keep the device always ready for use.
Perfect for security professionals, event coordinators, or recreational activities, the Baofeng UV-5R 3800mAh is an indispensable tool that ensures effective and reliable communications in any situation.
|
Dual band, dual display |
A/B band independent operation |
|
128 groups channels storage |
Shortcut menu operation mode |
|
VFO & Memory channels scan |
Emergency Alarm |
|
Tri-color background light selectable |
0~9 grades VOX selectable |
|
PTT & ANI ID |
FM radio and 25 stations storage |
|
1750Hz Brust Tone |
Time-out Timer |
|
Channel Monitor |
Battery Saver |
|
Keypad Lock |
Channel Step: 2.5/5/6.25/10/12.5/25KHz |
|
Low Battery Alert |
ROGER SET |
|
Emergency Alert |
25KHz/12.5KHz Switchable |
|
FM Radio (65.0MHz-108.0MHz) |
Large LCD Display |
|
LED Flashlight |
Hight /Low RF Power Switchable |
|
Voice companding |
50 CTCSS/ 104DCS coder & tone searching |
|
dual standby |
PC programmable |
|
Wide/Narrow Band(25kHz/12.5kHz) |
Transmitter time-out timer(TOT) |
|
High/Low TX power selectable |
Busy channel lock-out(BCLO) |
|
Specifications
|
|
|
General |
|
|
Frequency Range |
65-108MHz(FM Receive only) |
|
136-174MHZ and 400-520HZ (TX/RX) |
|
|
Channel No. |
128 |
|
Frequency Stability |
±2.5ppm |
|
Antenna |
High gain DualBand antenna |
|
Antenna Impedance |
50 |
|
Operating Voltage |
DC 7.4V |
|
Mode of operation |
Simple or semi-duplex |
|
Dimension(W x H x D) |
100 x 52 x 32 mm |
|
Weight |
250g(including battery, antenna) |
|
Antenna : |
SMA -Female |
|
Earpiece / mic type : |
Plug type |
|
Transmitter |
|
|
Output power |
4W / 1W (Max 5W) |
|
Modulation Mode |
16kF3E / 11kF3E |
|
Maximum deviation |
5kHz(Wide) / 2.5kHz(Narrow) |
|
Spurious Radiation |
7W |
|
Adjacent Ch. power |
-65dB(Wide) / -60dB(Narrow) |
|
Pre-emphasis characteristics |
6dB |
|
Current |
1.6A(5W) |
|
CTCSS/DCS deviation |
0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow) |
|
Intermediation sensitivity |
8-12mv |
|
Intermediation distortion |
10% |
Package Description:
1 x UV-5RE Plus (VHF136174 UHF 400-520Mhz)
1 x 7.4V 1800mah Li-ion Battery Pack
1 x Antenna
1 x Belt Clip
1 x ENG Manual
1 x Desktop Charger ( 100V ~ 240V )
1 x Earphone
Product Show
Detail Show

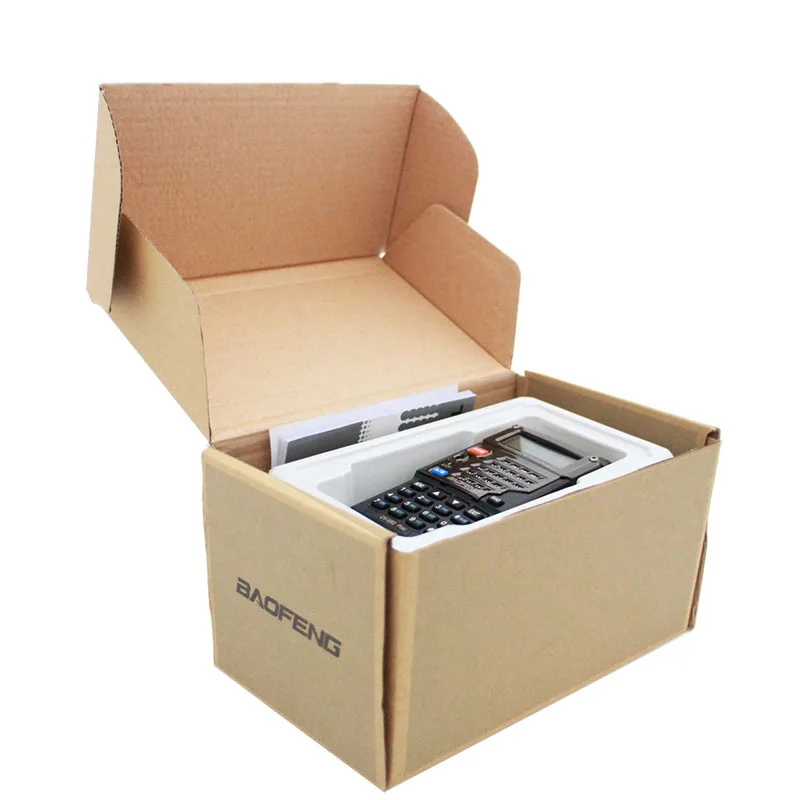

Package show
