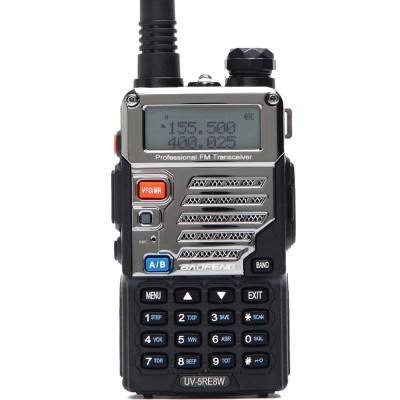

Baofeng UV-5RE
Baofeng UV-5RE: High Performance Communication in Europe
The dual-band model (136-174 MHz / 400-520 MHz) of the UV-5RE is available in a range of vibrant colors and is distributed exclusively through authorized Baofeng dealers.
Discover the Baofeng UV-5RE, a walkie-talkie designed to exceed expectations in complying with European regulations, carrying a CE certification. This model is the enhanced and fully legal version in Europe, designed to provide reliable and robust communication while adhering to local regulations.
- Output Power: 5W, perfect for clear and powerful transmissions over long distances
- High-Capacity Battery: 1800 mAh, providing durability and extended autonomy for prolonged use
- Range: up to 10 km, ideal for use in a variety of environments, from urban areas to outdoor activities
- Durable Case: built to withstand drops and rough use, ensuring superior durability
- Water Resistance: IP54 certified, suitable for handling rain and humid environments
The UV-5RE includes a USB charging option in addition to the traditional charging base, offering flexibility and convenience to keep the device operational in any situation.
Perfect for security professionals, event management, and outdoor enthusiasts who demand a reliable tool, the Baofeng UV-5RE is an excellent choice to ensure effective communication in any scenario.
Features and functions:
Dual band handheld transmitter and receiver with menu display function on LCD screen.
DTMF coded
High capacity lithium-ion battery pack.
Commercial FM radio receiver (65 MHz 108).
Includes 105 programmable PLS codes and 50 CTCSS privacy codes.
VOX function (voice transmission).
Alarm function
Up to 128 memory channels.
Wideband (wide)/narrowband (narrow), selectable.
High/low power (5 W/1 W) selectable.
Programmable keypad and backlight.
Beep function on keypad.
Dual Clock/Double Reception
Frequency step selectable 2.5 5 6.25/10 12.5 kHz 25
OFFSET function (frequency shift for repeater access).
Storage of battery saving function
Timed transmission TOT programmable
Selection of scan mode
Lock function for busy channels BCLO
Integrated CTCSS/DCS RX scanner
Integrated LED flashlight
Programmable via PC
Threshold for squelch level adjustable from 0 to 9
Cross-band reception
Final transmission tone
Integrated key
Parameters:
Model : UV-5RE
General :
Frequency range: 65 MHz-108 MHz (commercial FM radio reception only).
VHF: 136 MHz-174 MHz (Rx/Tx).
UHF: 400 MHz-520 MHz (Rx/Tx).
Memory channels: up to 128 channels.
Frequency stability: 2.5ppm
Frequency steps: 2.5 Khz/5 kHz/6.25 kHz/12.5 kHz/25 kHz.
Antenna impedance: 50Ω
Operating temperatures: -20 degrees Celsius to +60 degrees Celsius.
Operating voltage: rechargeable lithium ion 7.4V/1800mA.
Consumption in standby mode: 75ma
Consumption during reception: 380mA.
Consumption during transport: 1. 4A
Mode of operation: single or half duplex.
Duty cycle: 03 03/54 min (Rx/Tx/Standby).
Transmitter :
RF power: 4W/1W.
Type of modulation: FM
Transmitting category: 16 K Φ F3E/11KΦF3E (W/N).
Maximum deviation: 5 kHz/ 2.5 kHz (W/N).
Interference emission: <-60dB
Receiver :
Receiver sensitivity: 0.2uV (at 12dB SINAD).
Between modulations: 60dB
Audio power: 1000 MW
Adjacent channel selectivity: 65/60dB.
Package contents:
1 x UV-5RE dual band FM transceiver
1x headphone
1x antenna
1 x wrist strap
1 x rechargeable battery
1 x charger
1 x belt clip
1 x user manual
